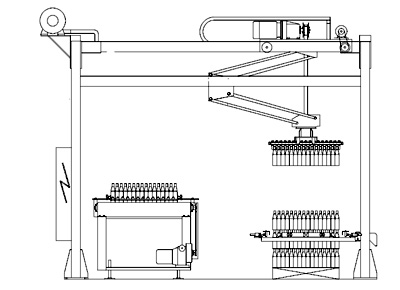

Modle KJM Frame-type Palletizing Machine

Glassware Palletizing Series
The Glassware Palletizing Series (Model DZM Pole-type, Model KJM Frame-type or Model PTM pushing-type) can meet the requirement for up to 12-section D.G. glassware production line. The grabbing-head or pushing-head of the palletizing machine can rotate 90°. The cardboard and empty-pallets are fed automatically. The complete set of palletizing machine can be designed to be automatic and semi-automatic according to clients’ orders. It is suitable for palletizing various glasswares

Model: DZM、KJM、PTM
Pallet Size（L×W×H）: 1200×1000×2400mm、1300×1100×2400mm
Pelletizing Rate: ＜45s/layer
Air Pressure: 0.4MPa
Installed Power: 5～20Kw
